SE00W104BK1000 - 10/4 Seoow 600V Black Cord 1000' Reel

Availability: In Stock Locally

Buy Now

QTY:

Feet

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: SE00W104BK1000 Vendor Code COR
Manufacturer: Cables & Cords
Manufacturer's Part Number: 55039403

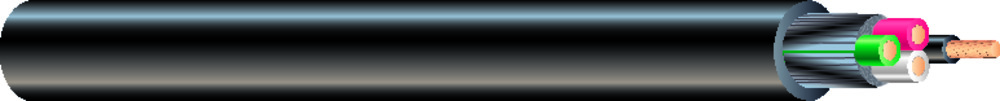

Description: 10/4 Seoow 600V Black Cord 1000' Reel
Portable Cord, Stranded, 104/30 MM Core Strands, #10 Awg Conductor Size, Copper Conductor Material, Thermoplastic Elastomer (Tpe) Jacket Material, Thermoplastic Elastomer (Tpe) Insulation Material, 25 A, Black, Green, Red and White, 4 Conductors, 1000 FT Overall Length, 0.705 In Outside Diameter, 0.045 In Insulation Thickness, -50 °C Operating Temperature, +105 °C Operating Temperature, 0.33 LB/FT
Slang Terms: Suggest a New Term
Categories: Enhanced Commodity Codes - Wire Mark as Incorrect
Suggest a New Category
Classification: Portable Cords, Voice, Data, Video Wire & Cable
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886038860 / 00032886038860
Weight per unit: 0.301 (lbs/ft)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Description: 10/4 SEOOW 600V BLACK CORD 1000' REEL
Product Type: Portable Cord
Long Description: Portable Cord, Stranded, 104/30 mm Core Strands, #10 AWG Conductor Size, Copper Conductor Material, Thermoplastic Elastomer (TPE) Jacket Material, Thermoplastic Elastomer (TPE) Insulation Material, 25 A, Black, Green, Red and White, 4 Conductors, 1000 ft Overall Length, 0.705 in Outside Diameter, 0.045 in Insulation Thickness, -50 °C Operating Temperature, +105 °C Operating Temperature, 0.33 lb/ft
Features: Coleman Cable's Seoprene(R) Thermoplastic Elastomer cord products are technologically advanced to meet the requirements of today's demanding commercial and industrial applications. They provide the chemical resistance characteristics of PVC with highly flexible properties.
Short Description: 500 ft Portable Cord, Stranded, 10/4 AWG SEOOW, 0.705 in
Additional Information: Chemical Resistant;Oil Resistant;Water Resistant
extra long description: SWC 55039403 10-104 CU 4/C BLACK/WH

Additional Information

Solid/Strand: Stranded
Core Strands: 104/30 mm
outside diameter: 0.705 in
Insulation Thickness: 0.045 in
Minimum Operating Temperature: -50 °C
Maximum Operating Temperature: +105 °C
for use with: Industrial Control;Motor Control;Pushbutton Remote Control;Robotic System;Stage Equipment and Lighting
Standards Met: RoHS Compliant;NEC 400;Federal Specification JC-580B;UL Listed;CSA Certified;MSHA
Made in USA: yes
media: Yes

Manufacturer Information
