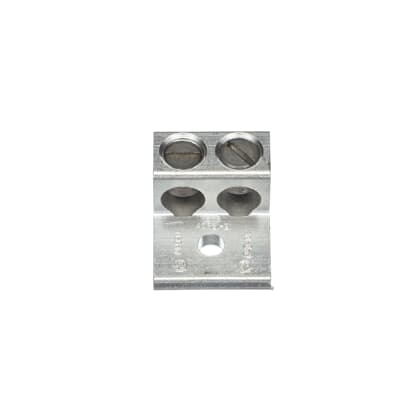

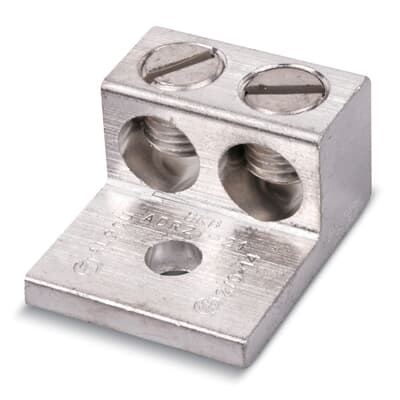

ADR2121 - 2/0 Al/Cu 2 Conduct Lug

Blackburn Mechanical

$4.75 (Each)
$4.75 (Each)
$57.03 (Per 12)
$475.23 (Per 100)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Help Improve Our Data

Quick Specs

Catalog Number: ADR2121 Vendor Code TAB
Manufacturer: Blackburn Mechanical
Manufacturer's Part Number: ADR21-21
Description: 2/0 Al/Cu 2 Conduct Lug
Mechanical Connector Lug, #14 Awg Conductor Size, 2/0 Awg (Stranded) Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 1-15/32 In Overall Length, Screw Terminal, 0.07 LB/Ea
Slang Terms
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121408 - Mechanical connectors
UPC/EAN/GTIN: 783786610099 / 5414363134794 / 00783786610099
Weight per unit: 0.065 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $4.75 (Each)
Carton: $57.03 (Per 12)

Resources

Images
: ADR2121 - Small Image
: ADR2121 - Large Image
: ADR2121 - Large Image
: ADR2121 - Large Image
: ADR2121 - Large Image
360 Images
: ADR2121 - 360 Image
Attachments
: ADR2121 - Specification Sheet
Other Links
: ADR2121 - Other
: ADR2121 - Other

Help Improve Our Data

Specifications

Help Improve Our Data

Features

Number of Conductors: 2
Terminal Type: Screw
Material: Aluminum

Material, Color, and Finish

Conductor Material: Aluminum;Copper
Finish: Tinned

Dimensions and Weight

Overall Length: 1-15/32 in

Descriptions

Product Type: Mechanical Connector Lug
Long Description: Mechanical Connector Lug, #14 AWG Conductor Size, 2/0 AWG (Stranded) Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 1-15/32 in Overall Length, Screw Terminal, 0.07 lb/EA
Short Description: 2/0 AL/CU 2 Conductor Mechanical Connector Lug, Non-Insulated, 1-15/32 in L
Special Features: Easy Installation;No Special Tools Required
Description: 2/0 AL/CU 2 CONDUCT LUG
extra long description: ABB ADR21-21 AL 2CNDTR 1HL MOUNT 14

Additional Information

Minimum Conductor Size: #14 AWG
Maximum Conductor Size: 2/0 AWG (Stranded)
For Stud Size: 3/16 in (Bolt)
Insulated/Non-Insulated: Non-Insulated
for use with: Copper and Aluminum Conductor
Made in USA: yes
Standards Met: UL Listed E9809;CSA Certified
package quantity: 12 CT;120 PK
Number of Mounting Holes: 1

Manufacturer Information

Brand: Blackburn Mechanical
sub brand: Blackburn
Manufacturers Part Number: ADR21-21
GTIN: 00783786610099
UPC: 783786610099

Taxonomies, Classifications, and Categories

Category Description: Comp & Mech Lugs and Butt Splices
Type: Dual-Rated Mechanical Connector

Packaging

Weight: 0.07 lb/EA
Weight per each: 0.065
Carton: 12

Uses, Certifications, and Standards

standard: UL E9809
