AH5369 - Conn 20A 125V 2P3W STR BW

Eaton

$24.58 (Each)
$24.58 (Each)
$245.84 (Per 10)
$1,229.22 (Per 50)
$2,458.45 (Per 100)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

$4,789.83Per 100

PS5369X

Pass & Seymour/Legrand
STR BLD Conn 3W 20a125v

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: AH5369 Vendor Code EWD
Manufacturer: Eaton
Manufacturer's Part Number: AH5369
Description: Conn 20A 125V 2P3W STR BW
Straight Blade Connector, 20 A, 125 V, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw Terminal, 20.6 In Length, #18 to #10 Awg Wire Size, Impact Resistant, Chemical Resistant, 0.0038 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Industrial Cord Connectors
UNSPSC: 39121402 - Electrical plugs
UPC/GTIN: 032664737565 / 00032664737565
Weight per unit: 0.195 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $24.58 (Each)
Carton: $245.84 (Per 10)
Standard Packaging: $1,229.22 (Per 50)

Resources

Images
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Large Image
: AH5369 - Small Image
: AH5369 - Video
Attachments
: AH5369 - Specification Sheet
Other Links
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other
: AH5369 - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Number of Wires: 3
Material: Nylon (Outer Shell/Interior Body);Polycarbonate (Terminal Retainer)
Terminal Type: Screw
Wire Size: #18 to #10 AWG
Current Rating: 20 A

Material, Color, and Finish

Color: Black/White

Dimensions and Weight

Diameter: 0.33 to 0.66 in (Cord)
Length: 20.6 in

Descriptions

Product Type: Straight Blade Connector
Description: CONN 20A 125V 2P3W STR BW
Long Description: Straight Blade Connector, 20 A, 125 V, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw Terminal, 20.6 in Length, #18 to #10 AWG Wire Size, Impact Resistant, Chemical Resistant, 0.0038 lb
Features: Industrial Specification Grade Straight Blade Plugs & Connectors - Ultra Grip NEMA 5-20, 2-Pole/3-Wire. Ultra Grip devices are designed to install quickly and easily and provide reliable performance in tough industrial environments.
Short Description: 20 A, 125 V, Straight Blade Connector, Black/White, 2 Pole, 3 Wire, UltraGrip
Special Features: Industrial Grade Straight Blade Devices;1.37 in Tip to Tip Width;1.50 in Base
extra long description: EWD AH5369 Conn 20A 125V 2P3W Str B

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +75 °C
Resistance Properties: Impact Resistant;Chemical Resistant
package quantity: 1 CT;10 PK
Standards Met: cULus Listed;FULs Listed;RoHS Compliant
media: Yes
dimensions: 2.2300 IN X 2.5900 IN X 2.1000 IN

Manufacturer Information

Brand: COOPER WIRING DEVICES
Manufacturers Part Number: AH5369
GTIN: 00032664737565
UPC: 032664737565

Taxonomies, Classifications, and Categories

Category Description: Industrial cord connectors
Type: Ultra grip

Packaging

Weight: 0.0038 lb
Weight per each: 0.195
Carton: 10
Package: 50

Uses, Certifications, and Standards

nema rating: 5-20P;5-20R
Application: Industrial
standard: UL,Federal Specification Classification 6221 02,NOM

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of AH5369.

Jump To:

Straight Blade Connector, 20 A, 125 V, 2 Poles, 3 Wires, Black/White, -40 °C Ope...

Our Part #: 5369N
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 5369N
Manufacturer: Eaton Wiring Devices
Find: Similar Items
Pkg Sizes: 10 ($318.10) · 50 ($1,590.50) ·

5369N - Eaton Wiring Devices

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$31.81

Each

QTY:

Each

Add

Spec Sheet

View In Catalog

QTY:

Each

Add

View Larger

Straight Blade Connector, 20 A, 125 V, 2 Poles, 3 Wires, Black/White, Nylon Mate...

Our Part #: PS5369X
Nacogdoches Availability: In Stock
Total Availability: In Stock

MFR Part #: PS5369X
Manufacturer: Pass & Seymour/Legrand
Find: Similar Items
Pkg Sizes: 10 ($478.98) · 50 ($2,394.92) ·

PS5369X - Pass & Seymour/Legrand

Nacogdoches Availability: In Stock

Total Availability: In Stock

Book Price

$47.90

Each

QTY:

Each

Add

Spec Sheet

View In Catalog

QTY:

Each

Add

View Larger

Straight Blade Device Connector, 20 A, 125 V Ac, 2 Poles, 3 Wires, Black/White, ...

Our Part #: HBL5369C
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: HBL5369C
Manufacturer: Hubbell Wiring Devices
Find: Similar Items
Pkg Sizes: 10 ($476.20) ·

HBL5369C - Hubbell Wiring Devices

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$47.62

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

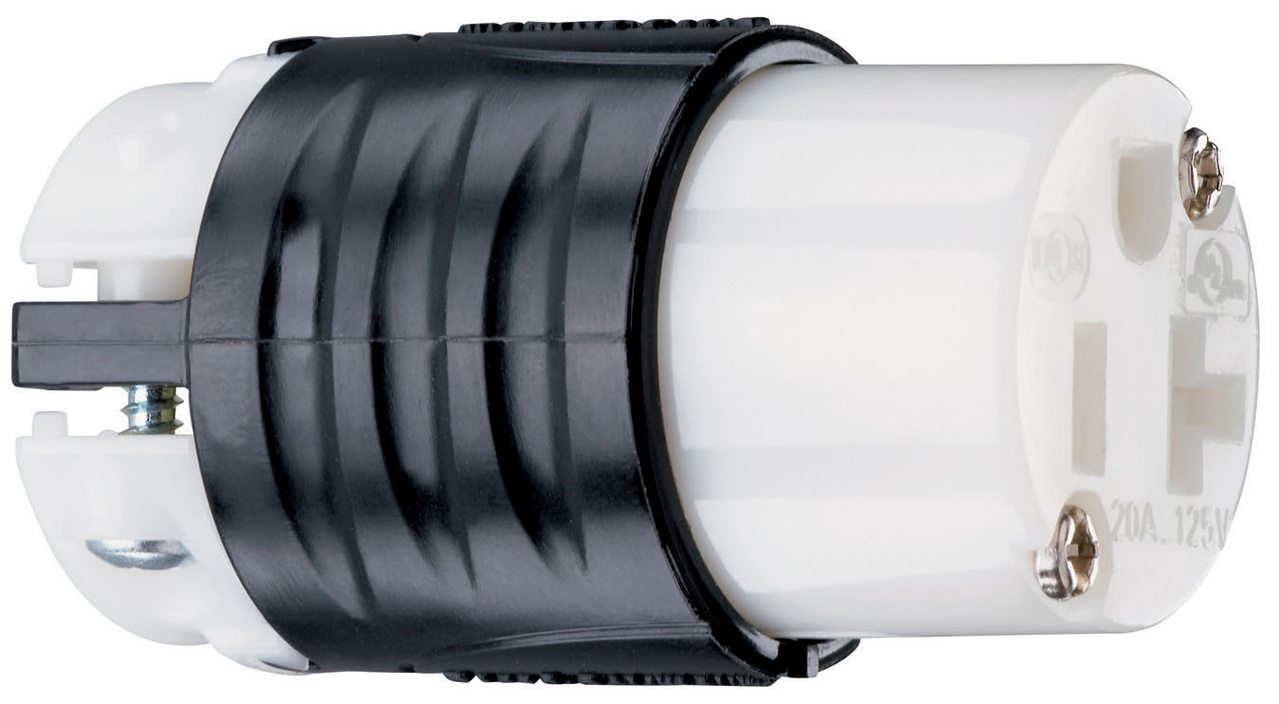

Straight Blade Connector 2-Pole 3-Wire 20A 125a

Our Part #: 5369X
Nacogdoches Availability: In Stock
Total Availability: In Stock

MFR Part #: PS5369X
Manufacturer: Pass & Seymour/Legrand
Find: Similar Items
Pkg Sizes: 10 ($478.98) ·

5369X - Pass & Seymour/Legrand

Nacogdoches Availability: In Stock

Total Availability: In Stock

Book Price

$47.90

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

Cross Referenced

These items are similar to AH5369 but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
5369N	Eaton Wiring Devices	00040893018256
6769	Eaton Wiring Devices	00040893023533
AH5369	Eaton Wiring Devices	00032664737565
66211-BK	Enerlites	00883951417383
1612C	Ericson	00782862587515
HBL5369C	Hubbell Wiring Device-Kellems	00783585174259
5369-C	Leviton	00078477795941
PS5369X	Legrand Pass & Seymour	00785007237030
5369	Woodhead	00786788703196
PS520CCLB	Legrand Pass & Seymour	n/a
