962634609 - COR

Also in stock

962634606 - 24/4PR CAT5E Cable Blue - Cables & Cords
$213.76Per 1,000 Feet

Cables & Cords

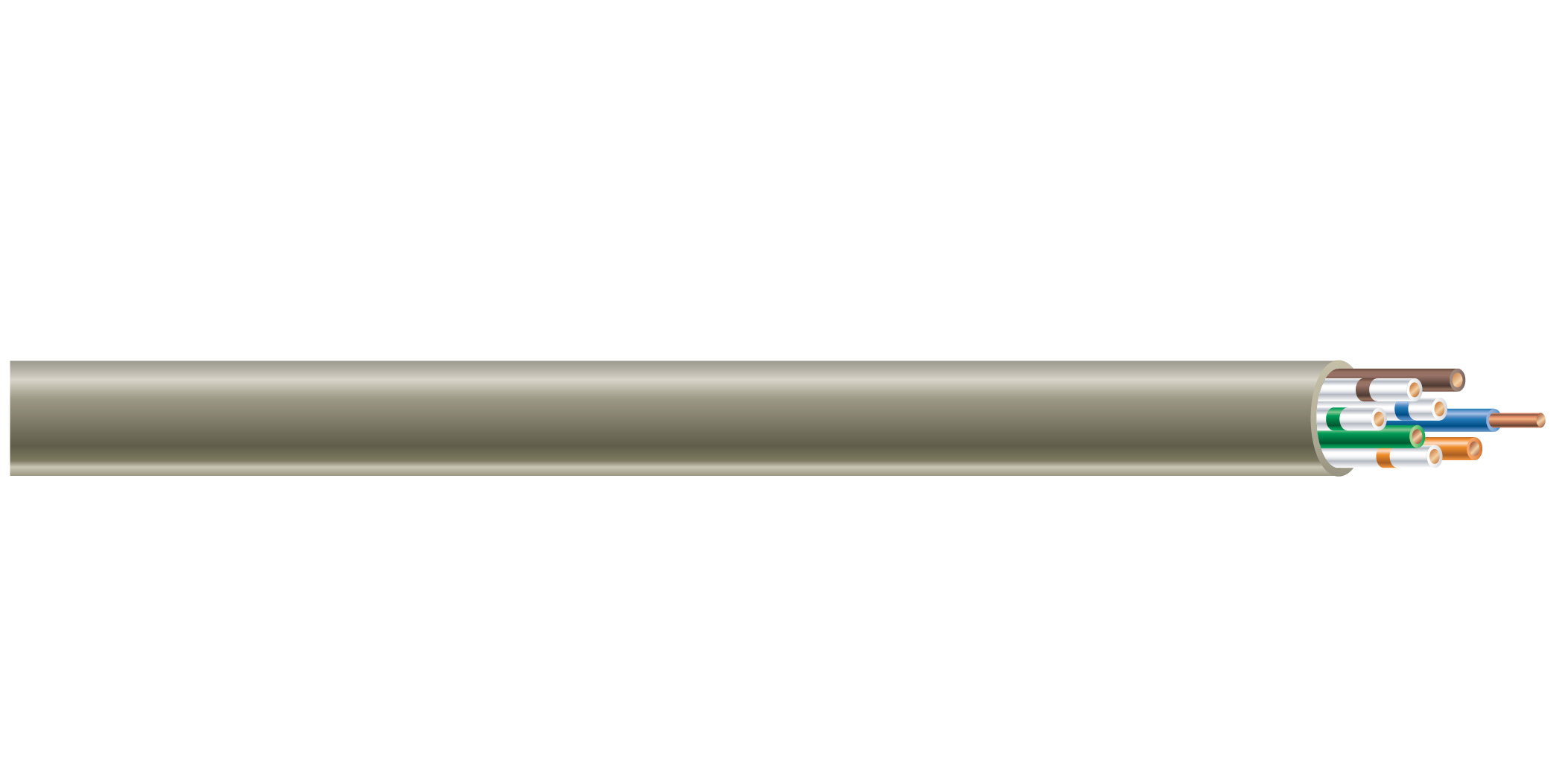

24/4PR CAT5E Cable Blue


View or Compare

962634609 - 24/4PR CAT5E Cable Gray

Cables & Cords

  • $0.24 (Per Foot)
  • $0.24 (Per Foot)
  • $240.92 (Per 1,000 Feet)

Availablity: In Stock

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    962634609
    Manufacturer
    Cables & Cords
    Manufacturer's Part Number
    962634609
    Description
    24/4PR CAT5E Cable Gray
    CAT5E Cable, Solid, 1000 FT Overall Length, 0.185 In Outside Diameter, 0.036 In Insulation Thickness, 9.38 , Copper Conductor Material, Polyethylene Insulation Material, PVC Jacket Material, Gray, 1 to 350 MHZ, 4.3 DB/100 M @ 155 MHZ Attenuation, 5.6 NF/100 M Capacitance, 24 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Twisted-Pair Cable - Pair CBL-Non-Plenum Unshielded  Mark as Incorrect
    Suggest a New Category
    Classification
    Electronic Cable
    UNSPSC
    26121609 - Network cable
    UPC/GTIN
    029892962630 / 00029892962630
    Weight per unit
    0.02 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $0.24 (Per Foot)
    Carton
    $240.92 (Per 1,000 Feet)
    Resources
    Images


    962634609 - Small Image

    962634609 - Large Image

    962634609 - Large Image
    Specifications Sheets


    962634609 - Specification Sheet
    Attachments


    962634609 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Conductor Size
    24 AWG Solid
    Material, Color, and Finish
    Conductor Material
    Copper
    Insulation Material
    Polyethylene
    Color
    Gray
    Jacket Material
    PVC
    Jacket Color
    GRAY
    Insulation Color Code
    White/Blue with Blue/White, White/Orange with Orange, White/Green with Green, White/Brown with Brown
    Dimensions and Weight
    Overall Length
    1000 ft
    Length
    1000 ft
    Descriptions
    Product Type
    Cat5e Cable
    Description
    24/4PR CAT5E CABLE GRAY
    Long Description
    Cat5e Cable, Solid, 1000 ft Overall Length, 0.185 in Outside Diameter, 0.036 in Insulation Thickness, 9.38 , Copper Conductor Material, Polyethylene Insulation Material, PVC Jacket Material, Gray, 1 to 350 MHz, 4.3 db/100 m @ 155 MHz Attenuation, 5.6 nf/100 M Capacitance, 24 lb/EA
    Short Description
    Cat5e Cable, Solid, 1000 ft
    extra long description
    1000 FT; SOLID BARE COPPER CONDUCTOR MATERIAL; UL 1666, CUL, ETL, CETL APPROVAL; PULL BOX STANDARD PACKAGE; PE INSULATION MATERIAL; 24 AWG SOLID CONDUCTOR SIZE; PVC JACKET MATERIAL; GRAY JACKET COLOR; 0.185 INCH CABLE OUTER DIAMETER; 5E CATEGORY; 0.036 INCH INSULATION THICKNESS; CMR JACKET RATING; 5.6 NANOFARAD/100 M CAPACITANCE; 9.38 OHM/100 M DC RESISTANCE; 4 CONDUCTOR PAIR(S); 1 TO 350 MHZ OPERATING FREQUENCY; 4.3 DB/100 M AT 155 MHZ ATTENUATION; WHITE/BLUE WITH BLUE/WHITE, WHITE/ORANGE WITH ORANGE, WHI
    Commodity Description
    Non-Plenum Unshld Twist-Pair Cable
    Additional Information
    ROHS Compliant; Applicable Standard ANSI 568B.2; Jacket Thickness 0.2 Inch; Application Commercial, Residential, Office Phone, Fax, Internet System
    Additional Information
    Cable Shape
    Round
    Standards Met
    UL Listed;cUL Listed;ETL Listed;CETL Listed
    Made in USA
    yes
    Solid/Strand
    Solid
    outside diameter
    0.185 in
    Insulation Thickness
    0.036 in
    Characteristic Impedance
    9.38
    Attenuation
    4.3 db/100 m @ 155 MHz
    Capacitance
    5.6 nf/100 M
    Cable Outer diameter
    0.185 Inch
    Operating Frequency
    1 to 350 MHz
    Number of Conductor Pairs
    4
    Category
    5E
    DC Resistance
    9.38 OHM/100 M
    Jacket Rating
    CMR
    Manufacturer Information
    Brand
    Cables & Cords
    Manufacturers Part Number
    962634609
    Model
    96263
    GTIN
    00029892962630
    UPC
    029892962630
    Taxonomies, Classifications, and Categories
    Category Description
    ELECTRONIC CABLE
    Packaging
    Package Type
    Box
    Weight
    24 lb/EA
    Standard Package
    PULL BOX
    Weight per foot
    0.02
    Carton
    1000
    Uses, Certifications, and Standards
    Application
    Commercial;Residential;Office Phone;Fax;Internet System
    Frequency Rating
    1 to 350 MHz
    Approval
    UL 1666, CUL, ETL, CETL
