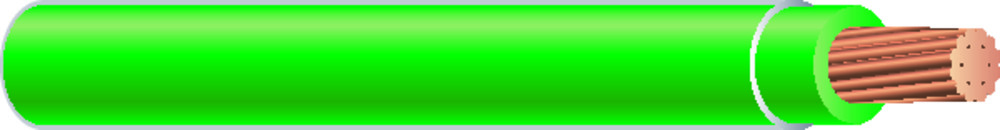

THHN1GN5000 - THHN 1 STR Green 5000'

Availability: Call for Availability

Buy Now

QTY:

Feet

$2,145.88Per 1,000 Feet

Copper
THHN 1 STR Green PCS

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: THHN1GN5000 Vendor Code COP
Manufacturer: Copper
Manufacturer's Part Number: 40019205
Description: THHN 1 STR Green 5000'
THHN Building Wire, Heat, Moisture, Gasoline and Oil Resistant;Simpull(R) Technology For Easier Pulling;Sunlight Resistant Additional Information, Commercial;Industrial Application, Green Color, Copper Conductor Material, 1 Awg Conductor Size, 110 A (60°C);130 A (75°C);145 A (90°C) Current Rating, PVC Insulation Material, 50 Mil Insulation Thickness, Nylon Jacket Material, Made In Usa, +90 °C Maximum Operating Temperature, 19 - Strands, 435 Mil Outside Diameter, 5000 FT Overall Length, Reel;Spool Package T
Slang Terms: Suggest a New Term
Categories: Enhanced Commodity Codes - Wire Mark as Incorrect
Suggest a New Category
Classification: Building Wire
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886901492 / 00032886901492
Weight per unit: 0.3 (lbs/ft)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: THHN Building Wire
Long Description: THHN Building Wire, Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling;Sunlight Resistant Additional Information, Commercial;Industrial Application, Green Color, Copper Conductor Material, 1 AWG Conductor Size, 110 A (60°C);130 A (75°C);145 A (90°C) Current Rating, PVC Insulation Material, 50 mil Insulation Thickness, Nylon Jacket Material, Made in USA, +90 °C Maximum Operating Temperature, 19 - Strands, 435 mil Outside Diameter, 5000 ft Overall Length, Reel;Spool Package T

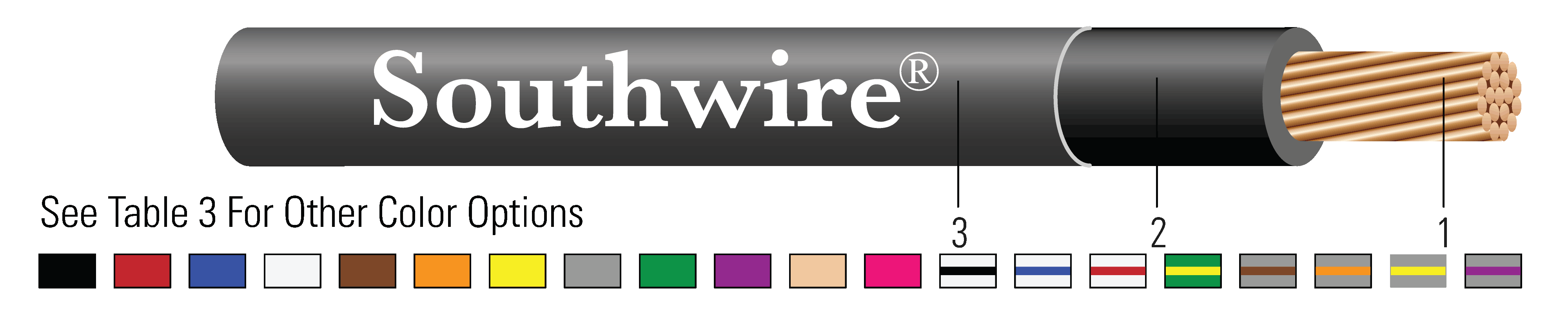

Features: Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
Short Description: THHN Building Wire, 600 V, Green, Nylon Jacket, 19 Strands, 1 AWG
Additional Information: Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling;Sunlight Resistant
Special Features: No Lube
Description: THHN 1 STR GREEN 5000'
extra long description: SWC 40019205 THHN 1 Str Cu SIM Gn 5

Additional Information

Number of Strands: 19
outside diameter: 435 mil
Insulation Thickness: 50 mil
Maximum Operating Temperature: +90 °C
Standards Met: CSA C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90° C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;FT1 - All Sizes;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;VW-1;UL Listed;cULus Listed
Made in USA: yes
media: Yes
