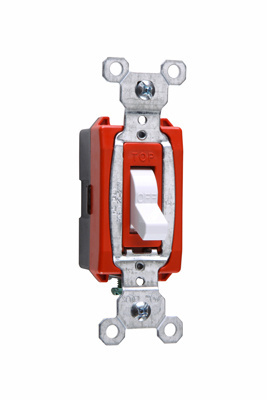

CS20AC1W - 20A 120/277VAC S Wire Comm SP SW W

Availability: In Stock Locally

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: CS20AC1W Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: CS20AC1W
Description: 20A 120/277VAC S Wire Comm SP SW W
Toggle Switch, 1 Pole, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Switches Mark as Incorrect
Suggest a New Category
Classification: Commercial Switches
UNSPSC: N/A
UPC/EAN/GTIN: 785007126471 / 0785007126471 / 00785007126471
Weight per unit: 0.164 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Toggle Switch
Long Description: Toggle Switch, 1 Pole, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 lb
Features: Commercial single pole switch in white, with side wire, is made with high strength thermoplastic polycarbonate toggle which resists breaking and chipping under heavy abuse. Its one-piece brass alloy contact arm allows for reliable electrical performance. Also, the one-piece steel strap with integral ground is plated for corrosion resistance. The heavy-duty toggle bumpers allow for a smooth and quiet operation. 20amp 120/277volt.
Short Description: 20 A, 120/277 VAC, Toggle Switch, White, 4 Poles, 4 Ways, B&S Wire
Special Features: Side Wire;Locking Support;Heavy Duty Toggle
Description: 20A 120/277VAC S WIRE COMM SP SW W
extra long description: P&S CS20AC1W 20A 120/277VAC S WIRE

Additional Information

media: Yes
Connection Type: Grounding
actuator type: Toggle
Mounting Type: Wall Mount
Maximum Operating Temperature: +115 °c
Standards Met: RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
package quantity: 10 CT;50 PK
dimensions: 1.320 (L) x 1.073 (W) x 3.281 (H) in
Minimum Operating Temperature: -40 °C
Voltage: 120.0 V
Contact Rating: 20Amp, 120/277Vac
action: Single pole
Switch Type: Toggle
