SJEW163BK250 - COR

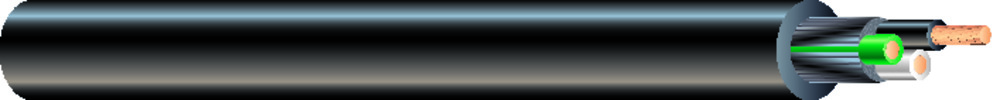

SJEW163BK250 - 16/3 Sjew 300V Black Cord 250' Reel

Cables & Cords

$0.83 (Per Foot)
$0.83 (Per Foot)
$206.41 (Per 250 Feet)
$825.65 (Per 1,000 Feet)

Availability: Call for Availability

Buy Now

QTY:

Feet

Overview
Reel Sizes
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Quick Specs

Catalog Number: SJEW163BK250 Vendor Code COR
Manufacturer: Cables & Cords
Manufacturer's Part Number: 55040303
Description: 16/3 Sjew 300V Black Cord 250' Reel
Portable Cord, Stranded, 26/30 MM Core Strands, #16 Awg Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 FT Overall Length, 0.335 In Outside Diameter, 0.031 In Insulation Thickness, +90 °C (Ul) Operating Temperature, 0.07 LB/MFT
Slang Terms: Suggest a New Term
Categories: 300V General Duty Cord & Cable - SJ-Sje Mark as Incorrect
Suggest a New Category
Classification: Portable Cords, Voice, Data, Video Wire & Cable
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886039447 / 00032886039447
Weight per unit: 0.08 (lbs/ft)

Price & Packaging

Minimum Order Quantity: Foot
Unit: $0.83 (Per Foot)
Reel: $206.41 (Per 250 Feet)

Resources

Images
: SJEW163BK250 - Large Image
: SJEW163BK250 - Small Image
: SJEW163BK250 - Large Image
: SJEW163BK250 - Large Image
: SJEW163BK250 - Video
Other Links
: SJEW163BK250 - Other
: SJEW163BK250 - Other
Attachments
: SJEW163BK250 - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Reel Sizes

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Features

Conductor Size: #16 AWG
Voltage Rating: 300 V

Material, Color, and Finish

Conductor Material: Copper
Jacket Material: Thermoplastic
Insulation Material: Thermoplastic
Color: Black;Green;White

Dimensions and Weight

Overall Length: 250 ft

Descriptions

Description: 16/3 SJEW 300V BLACK CORD 250' REEL
extra long description: SWC 55040303 16-26 CU 3/C BLACK/WHI
Product Type: Portable Cord
Long Description: Portable Cord, Stranded, 26/30 mm Core Strands, #16 AWG Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 ft Overall Length, 0.335 in Outside Diameter, 0.031 in Insulation Thickness, +90 °C (UL) Operating Temperature, 0.07 lb/mft
Short Description: 250 ft Portable Cord, Stranded, 26/30 Strands, 16 AWG SJEW

Additional Information

outside diameter: 0.335 in
Insulation Thickness: 0.031 in
Maximum Operating Temperature: +90 °C (UL);+60 °C (CSA)
for use with: Industrial Control and Robotic System;Mining;Motor Control;Outdoor;Pushbutton Remote Control;Stage Equipment and Lighting
Standards Met: UL Listed;CSA Certified;MSHA;NEC 400;Federal Specification JC-580B
Made in USA: yes
Solid/Strand: Stranded
Core Strands: 26/30 mm
media: Yes

Manufacturer Information

Brand: Cables & Cords
Manufacturers Part Number: 55040303
GTIN: 00032886039447
UPC: 032886039447

Taxonomies, Classifications, and Categories

Category Description: Portable Cords, Voice, Data, Video Wire & Cable

Packaging

Package Type: Reel
Weight: 0.07 lb/mft
Weight per foot: 0.08
Carton: 250
