THHN2GN5000 - THHN 2 STR Green 5000'

Availability: Call for Availability

Buy Now

QTY:

Feet

$1,932.10Per 1,000 Feet

Copper
THHN 2 STR Green PCS

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: THHN2GN5000 Vendor Code COP
Manufacturer: Copper
Manufacturer's Part Number: 29583206

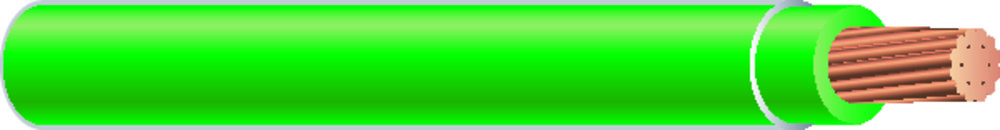

Description: THHN 2 STR Green 5000'
600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant Ii. Rated THHN and THWN-2. Also Rated MTW. Simpull Technology For Easier Pulling.
Slang Terms: Suggest a New Term
Categories: Copper Building Wire - THHN-T90-STR (Stranded) Mark as Incorrect
Suggest a New Category
Classification: Building Wire
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886233432 / 00032886233432
Weight per unit: 0.234 (lbs/ft)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: THHN Building Wire
Additional Information: Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling;Sunlight Resistant
Features: Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
Short Description: THHN Building Wire, 2 AWG, Stranded, Annealed Copper, Green, 5000
Long Description: 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN-2. Also rated MTW. SIMpull Technology for Easier Pulling.
Special Features: No Lube
Description: THHN 2 STR GREEN 5000'
extra long description: SWC 29583206 THHN 2 Str Cu SIM Gn 5

Additional Information

outside diameter: 378 mil
Insulation Thickness: 40 mil
Maximum Operating Temperature: 90 °C
Standards Met: CSA Certified C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90°C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;VW-1;UL Listed;cULus Listed
Made in USA: yes
Number of Strands: 19
media: Yes

Manufacturer Information
