2 Pole Standard Trip Plug-In
CHF220

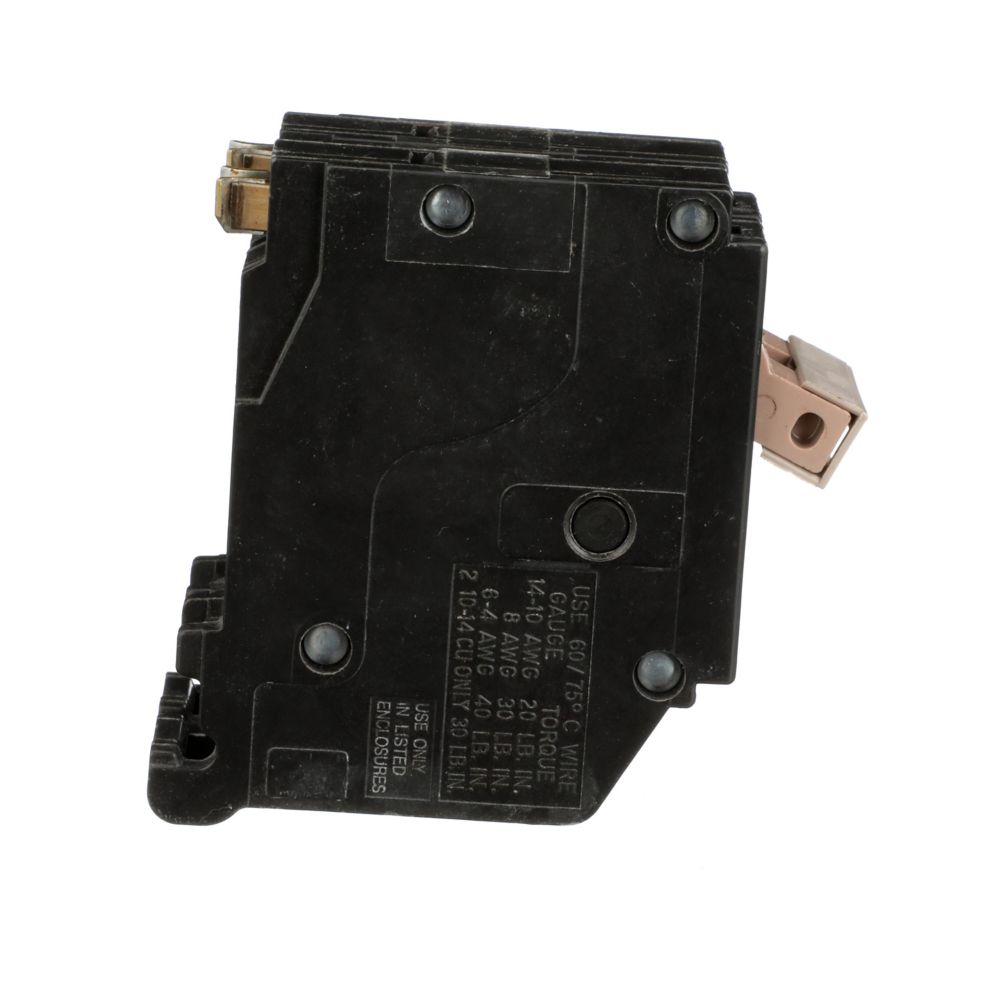

CHF220 - Type CHF BRKR 20A/2P 120/240V 10 Kaic

Eaton

  • $28.74 (Each)

  • $28.74 (Each)

  • $143.70 (Per 5)

  • $718.50 (Per 25)

In-Stock: 1 available locally (Hereford, TX) ( change location)

Buy Now
QTY:
Each
Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!
  Edit Mode: Please login to suggest improvements for this item. Close
Help Improve Our Data
Quick Specs
Catalog Number
CHF220
Manufacturer
Eaton
Manufacturer's Part Number
CHF220
Description
Type CHF BRKR 20A/2P 120/240V 10 Kaic
Standard Trip Circuit Breaker, 20 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 0.75 In Overall Width, 0.57 LB
Slang Terms

Suggest a New Term
Categories
Standard Trip Plug - 2 Pole Standard Trip Plug-In Mark as Incorrect
Suggest a New Category
Classification
Loadcenter Plug In Breakers and Accessories
UNSPSC
39121601 - Circuit breakers
UPC/GTIN
786685361888 / 00786685361888
Weight per unit
0.57 (lbs/each)
Price & Packaging
Minimum Order Quantity
1
Unit
$28.74 (Each)
Carton
$143.70 (Per 5)
Standard Packaging
$718.50 (Per 25)
Stock Availability
Hereford
1 (Check another store)
Amarillo
19
All Stores
6,396
Resources
Tech Bulletins


CHF220 - Tech Bulletin
Other Links


CHF220 - Other

CHF220 - Other

CHF220 - Other

CHF220 - Other

CHF220 - Other

CHF220 - Other
Images


CHF220 - Small Image

CHF220 - Large Image

CHF220 - Large Image

CHF220 - Large Image

CHF220 - Large Image

CHF220 - Large Image

CHF220 - Large Image
Attachments


CHF220 - Specification Sheet
Brochures


CHF220 - Brochure
Suggest Substitute Item
Help Improve Our Data
  Edit Mode: Please login to suggest improvements for this item. Close
Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!
  Edit Mode: Please login to suggest improvements for this item. Close
Help Improve Our Data
Features
Current Rating
20 A
Interrupt Rating
10 kAIC
Poles
2
Voltage Rating
120/240 V ac
Dimensions and Weight
Overall Length
3 in
Descriptions
Description
TYPE CHF BRKR 20A/2P 120/240V 10 KAIC
Extra Long Description
ETN CHF220 TYPE CHF BREAKER 20A/2P
Features
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip- free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip co
Long Description
Standard Trip Circuit Breaker, 20 A, Common Tripping Mechanism, Plug-On, 120/240 V ac, 3 in Overall Height, 3 in Overall Length, 0.75 in Overall Width, 0.57 lb
Product Type
Standard Trip Circuit Breaker
Short Description
Standard Trip Circuit Breaker, 20 A, 120/240 VAC
Additional Information
Circuit Breaker Type
Standard Trip Circuit Breaker
Dimensions
1.5000 IN X 0.7500 IN X 2.6000 IN
For Use With
Type CH Loadcenters
Mounting Type
Plug-On
Overall Height
3 in
Overall Width
0.75 in
Standards Met
UL 489 Listed;IGCC 4813
Trip Type
Trip flag
Tripping Mechanism
Common
Manufacturer Information
Brand
EATON CUTLER-HAMMER
Manufacturers Part Number
CHF220
GTIN
00786685361888
UPC
786685361888
Taxonomies, Classifications, and Categories
Category Description
Loadcenter Plug In Breakers and Accessories
Type
Thermal magnetic circuit breakers
Packaging
Weight
0.57 lb
Weight per each
0.57
Carton
5
Package
25
Uses, Certifications, and Standards
Application
Generation - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative EnergyOtherMarine Vessels and Equipment - Marine Vessels and Equipment - OtherDatacenters - IT Space: CI and Hyper Converged
Standard
UL 489,HACR Rated
