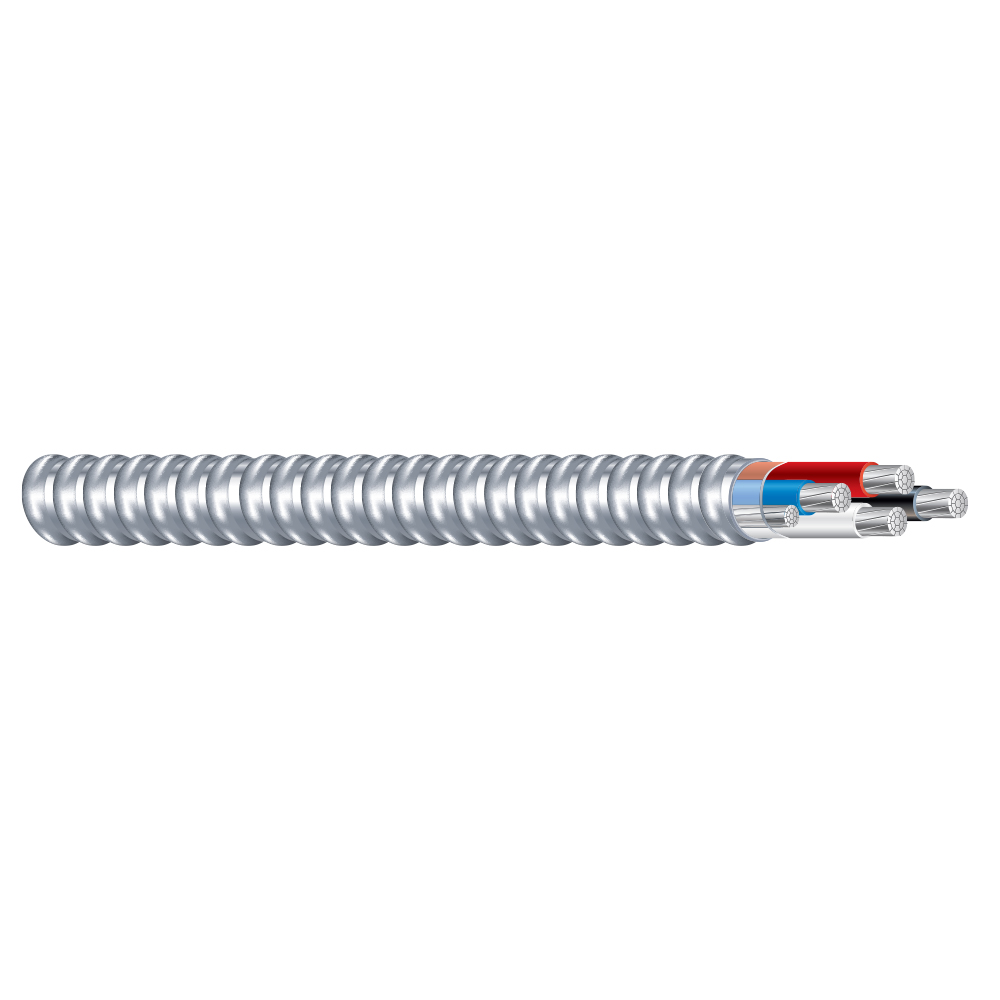

MC124BKRDBLWH - 12/4 WG MC Sol BK/BL/WH/RD/GN Alu Armor 250'

Availability: In Stock Locally

Buy Now

QTY:

Each

Quick Specs

Catalog Number: MC124BKRDBLWH Vendor Code ALF
Manufacturer: Flexible Conduit
Manufacturer's Part Number: 68719401
Description: 12/4 WG MC Sol BK/BL/WH/RD/GN Alu Armor 250'
Aluminum Armored Conductor, Solid, #12 Awg Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White, Red, Blue and Green, 4 Conductors, 250 FT Overall Length, 0.539 In Outside Diameter, +90 °C Operating Temperature, 155 LB/MFT
Slang Terms
Categories: Enhanced Commodity Codes - Wire Mark as Incorrect
Classification: BX & MC
UNSPSC: 26121517 - Copper wire
UPC/GTIN: 032886347320 / 00032886347320
Weight per unit: 0.155 (lbs/each)

Price & Packaging

Resources

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Aluminum Armored Conductor
Long Description: Aluminum Armored Conductor, Solid, #12 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White, Red, Blue and Green, 4 Conductors, 250 ft Overall Length, 0.539 in Outside Diameter, +90 °C Operating Temperature, 155 lb/mft
Short Description: Aluminum Armored Conductor, Solid, 12/4 AWG with ground, PVC Jacket, 250 ft
extra long description: SWC 68719401 Armorlite Type MC
Description: 12/4 WG MC SOL BK/BL/WH/RD/GN ALU ARMOR 250'

Additional Information

media: Yes
Solid/Strand: Solid
outside diameter: 0.539 in
Maximum Operating Temperature: +90 °C
Standards Met: RoHS Compliant;Federal Specification A-A-59544;IEEE 1202;NEC;UL 83;UL1569;UL1685
Made in USA: yes
