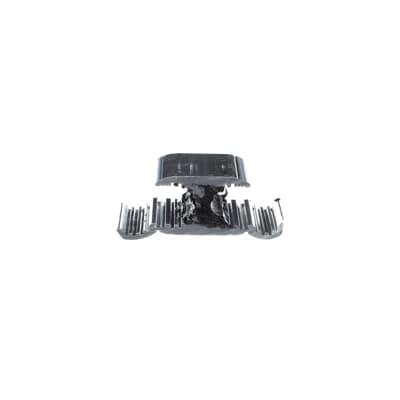

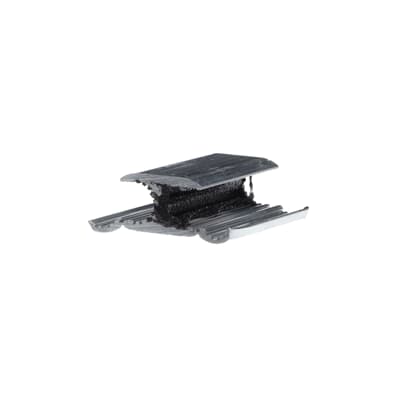

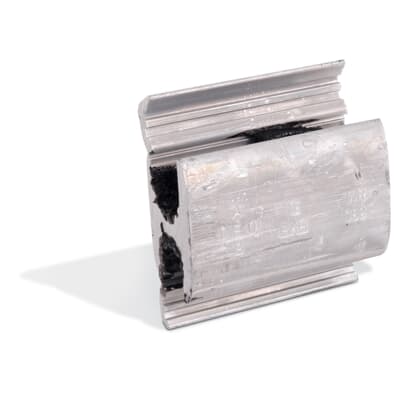

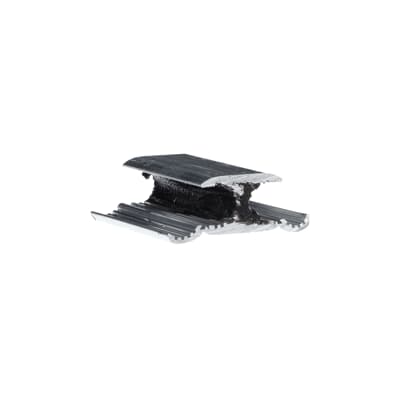

WR419 - 4/0 to 4/0 H Tap Conn

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: WR419 Vendor Code TAB
Manufacturer: Blackburn Mechanical
Manufacturer's Part Number: WR419
Description: 4/0 to 4/0 H Tap Conn
H-Type Compression Connector, Non-Insulated, Aluminum Conductor Material, 2 Conductors, Up to 90 °C Operating Temperature, 2-7/16 In Overall Length, Compression/Crimp Terminal, 0.25 LB/Ea
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: T&B C Tap Lugs
UNSPSC: 39121409 - Wire connectors
UPC/EAN/GTIN: 783786100118 / 5415022349320 / 00783786100118
Weight per unit: 0.173 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Terminal Type: Compression;Crimp
Number of Conductors: 2
Material: Aluminum
connection: Compression
Wire Size: Main: 4/0 to 3/0 ACSR or 4/0 STR AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG
insulation: None

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: H-Type Compression Connector
Long Description: H-Type Compression Connector, Non-Insulated, Aluminum Conductor Material, 2 Conductors, Up to 90 °C Operating Temperature, 2-7/16 in Overall Length, Compression/Crimp Terminal, 0.25 lb/EA
Short Description: H-Type Compression Connector, Non-Insulated, 2-7/16 in L
Special Features: Made of 1350 Aluminum Alloy for High Strength and High Conductivity;Standard Compression Tools and Dies Install all Sizes;No Special Tools Needed;Field-Proven Ribbed Design Enables Excellent Connector/Conductor Contact Without Distorting the Conduct
Description: 4/0 TO 4/0 H TAP CONN
extra long description: ABB WR419 AL HTYPE COMPCON 4/0-3/0A

Additional Information

Maximum Conductor Size: Standard Conductor-Main:4/0, 3/0 AWG (ACSR), 4/0, 3/0 AWG (Stranded);Standard Conductor-Tap:4/0, 3/0 AWG (ACSR), 4/0, 3/0 AWG (Stranded);Campact Conductor-Main:26618/1 kcmil, 4/0, 3/0 AWG (ACSR), 266 kcmil, 250 kcmil, 4/0 AWG (Stranded);Campact Conductor-Tap:26618/1 kcmil, 4/0, 3/0 AWG (ACSR), 266 kcmil, 250 kcmil, 4/0 AWG (Stranded)
Insulated/Non-Insulated: Non-Insulated
Maximum Operating Temperature: Up to 90 °C
for use with: Hydraulic Tool
Made in USA: yes
Standards Met: RUS Accepted;ANSI C119.4
package quantity: 25 CT;250 PK

Manufacturer Information

Taxonomies, Classifications, and Categories

Packaging

Uses, Certifications, and Standards

environmental conditions: All Seasons / Conditions
Application: For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Mounting: None
standard: RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating: up to 90 C
