AGC2R - BUS

AGC2R - 2A 250V 1/4X1-1/4 Rohs Fa Glass Fuse

Eaton

  • $0.92 (Each)
  • $0.92 (Each)
  • $4.60 (Per 5)

Availablity: In Stock

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    AGC2R
    Manufacturer
    Eaton
    Manufacturer's Part Number
    AGC-2-R
    Description
    2A 250V 1/4X1-1/4 Rohs Fa Glass Fuse
    Eaton Agc Series Fast-Acting Fuse 2A, 250 Vac, 32 VDC (Self Certified), Agc-2-R
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Fuses - Small Dimension Fuses  Mark as Incorrect
    Suggest a New Category
    Classification
    Glass Fuses (and Ceramic)
    UNSPSC
    39121607 - Glass body fuses
    UPC/GTIN
    051712655057 / 00051712655057
    Weight per unit
    0.006 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $0.92 (Each)
    Carton
    $4.60 (Per 5)
    Resources
    Images

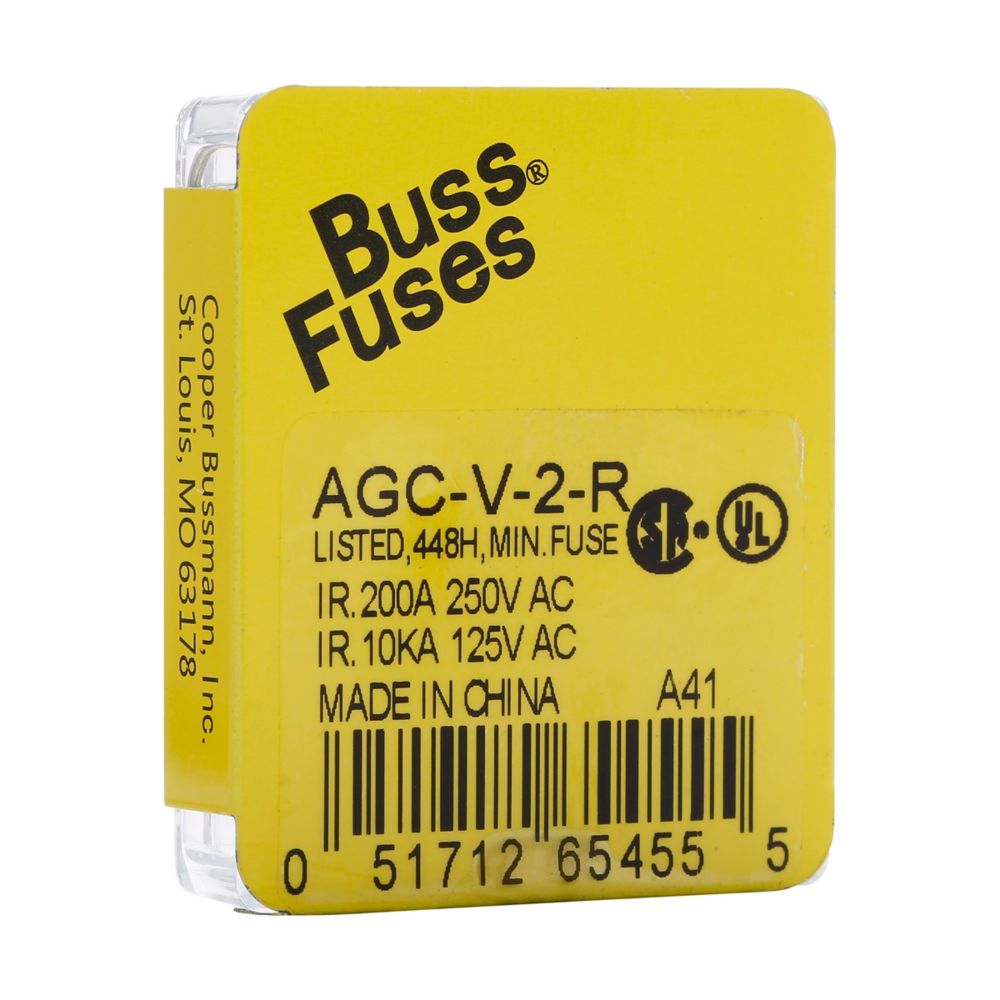

    AGC2R - Small Image

    AGC2R - Large Image

    AGC2R - Large Image

    AGC2R - Large Image
    Attachments


    AGC2R - Specification Sheet

    AGC2R - Specification Sheet
    Brochures


    AGC2R - Brochure

    AGC2R - Brochure

    AGC2R - Brochure
    Other Links


    AGC2R - Other

    AGC2R - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    amperage rating
    2
    Voltage Rating
    250 V ac
    interrupt rating
    100 A @ 250 V ac;10000 A @ 125 V ac
    connection
    Ferrule End X Ferrule End
    Current Rating
    2 A
    Material
    Glass (Body);Brass( End Cap)
    Terminal Type
    Ferrule
    Dimensions and Weight
    Size
    Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
    Overall Length
    1-1/4 in;32 mm
    Diameter
    1/4 in;6.3 mm
    Descriptions
    Description
    2A 250V 1/4X1-1/4 ROHS FA GLASS FUSE
    Product Type
    Fuse
    Long Description
    Fuse, Fast Acting Fuse Speed, 120/3.6k s Response Time, Ferrule End x Ferrule End Connection, 2 A, 250 V ac, Glass (Body);Brass( End Cap) Material, Ferrule Terminal, 1/4 in Diameter, 1-1/4 in Overall Length, 0.006 lb
    extra long description
    EFSE AGC-2-R BUSS SMALL DIMENSION F
    Special Features
    0.032A
    Short Description
    2 A, 250 VAC, Fast Acting Fuse, 35 A @ (50 Hz) V ac
    Features
    Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase w
    Additional Information
    Response Time
    14 A
    dimensions
    MUL
    type of indicators
    Telecom/Data Center
    Coil Voltage
    Thermoplastic bodyTin-plated bifurcated copper terminal
    Fuse Speed
    Fast Acting
    Connection Type
    Ferrule End x Ferrule End
    Standards Met
    UL 248-14 Listed;CSA Certified;RoHS Compliant;CE Certified
    package quantity
    5 CT
    Manufacturer Information
    Brand
    Eaton Bussmann series
    sub brand
    0.032A
    Manufacturers Part Number
    AGC-2-R
    GTIN
    00051712655057
    UPC
    051712655057
    Taxonomies, Classifications, and Categories
    Category Description
    GLASS FUSES (and ceramic)
    Type
    Electronic, Fast Acting
    Packaging
    Weight
    0.006 lb
    Weight per each
    0.006
    Carton
    5
    Uses, Certifications, and Standards
    Application
    Electronic Circuits
    Frequency Rating
    0.032A
    standard
    UL 248-14, CSA
    Help Improve Our Data
